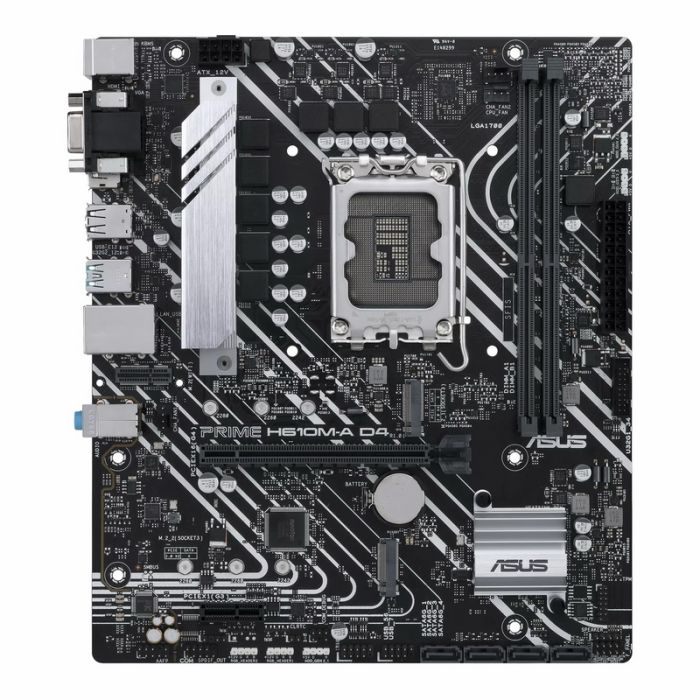

Asus Prime H610M-A D4 Intel Socket LGA1700 mATX Motherboard | PCIe 4.0 M.2 | 1 GB Ethernet | HDMI | DisplayPort | D-Sub | SATA 6 Gbp/s | USB 3.2 Gen 2 | Aura Sync RGB Headers

• Intel LGA 1700 socket: Ready for 12th Gen Intel processors
• Comprehensive cooling: VRM heatsink, PCH heatsink, and Fan Xpert 2+
• Ultrafast connectivity: 32Gbps M.2 slot, Intel 1 Gb Ethernet, and USB 3.2 Gen 2 ports
• Aura Sync RGB: Onboard addressable Gen 2 headers for RGB LED strips, easily synced with Aura Sync-capable hardware

Model

• PRIME H610M-A D4

CPU

• Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors
• Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
• Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.

Chipset

• Intel H610 Chipset

Memory

• 2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
• Dual Channel Memory Architecture
• Supports Intel Extreme Memory Profile (XMP)
• The actual memory data rate depends on the CPU types and DRAM modules, for more information refer to the Memory QVL (Qualified Vendors Lists).

Graphics

• 1 x DisplayPort
• 1 x D-Sub port
• 1 x HDMI port
• Graphics specifications may vary between CPU types. Please refer to this for any updates.
• Supports max. 4K@60Hz as specified in DisplayPort 1.4.
• Supports 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

• Intel 13th & 12th Gen Processors
• 1 x PCIe 4.0 x16 slot
• Intel H610 Chipset
• 1 x PCIe 3.0 x1 slot

Storage

• Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
• Intel H610 Chipset
• M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
• M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
• 4 x SATA 6Gb/s ports

Ethernet

• 1 x Intel 1Gb Ethernet

Wireless & Bluetooth

• V-M.2 slot only (Key E, CNVi & PCIe)
• Wi-Fi module is sold separately.

USB

• Rear USB (Total 6 ports)
• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• Front USB (Total 5 ports)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports

Audio

• Realtek 7.1 Surround Sound High Definition Audio CODEC
• Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
• Supports up to 24-Bit/192 kHz playback
• Audio Features
• Audio Shielding
• Premium audio capacitors
• Dedicated audio PCB layers
• A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

• 2 x USB 3.2 Gen 2 ports (2 x Type-A)
• 4 x USB 2.0 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x D-Sub port
• 1 x V-M.2 slot (Key E)
• 1 x Intel 1Gb Ethernet port
• 3 x Audio jacks
• 1 x PS/2 Keyboard (Purple) port
• 1 x PS/2 Mouse (green) port

Internal I/O Connectors

• Fan and Cooling related
• 1 x 4-pin CPU Fan header
• 2 x 4-pin Chassis Fan headers
• Power related
• 1 x 24-pin Main Power connector
• 1 x 8-pin +12V Power connector
• Storage related
• 2 x M.2 slots (Key M)
• 4 x SATA 6Gb/s ports
• USB
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 2 x USB 2.0 headers support additional 3 USB 2.0 ports
• Miscellaneous
• 3 x Addressable Gen 2 headers
• 2 x AURA RGB headers
• 1 x Clear CMOS header
• 1 x Front Panel Audio header (AAFP)
• 1 x COM Port header
• 1 x S/PDIF Out header
• 1 x Speaker header
• 1 x SPI TPM header (14-1pin)
• 1 x 10-1 pin System Panel header

Special Features

• ASUS 5X PROTECTION III
• DIGI+ VRM
• LANGuard
• Overvoltage Protection
• SafeSlot Core
• Stainless-Steel Back I/O
• ASUS Q-Design
• Q-DIMM
• Q-Slot
• ASUS Thermal Solution
• VRM heatsink design
• AURA Sync
• AURA RGB headers
• Addressable Gen 2 headers

Software Features

• ASUS Exclusive Software
• Armory Crate
• AURA Creator
• AURA Sync
• Fan Xpert 2+
• AI Suite 3
• Performance And Power Saving Utility
• TurboV EVO
• EPU
• DIGI+ VRM
• ASUS CPU-Z
• Norton Anti-virus software (Free Trial version)
• WinRAR
• UEFI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode

BIOS

• 128 Mb Flash ROM, UEFI AMI BIOS

Manageability

• WOL by PME, PXE

Accessories

• Cables
• 2 x SATA 6Gb/s cables
• Miscellaneous
• 1 x I/O Shield
• 1 x M.2 SSD screw package
• Installation Media
• 1 x Support DVD
• Documentation
• 1 x User guide

Operating System

• Windows 11 64-bit, Windows 10 64-bit

Form Factor

• mATX Form Factor
• 9.6 inch x 8.3 inch ( 24.4 cm x 21.1 cm )
