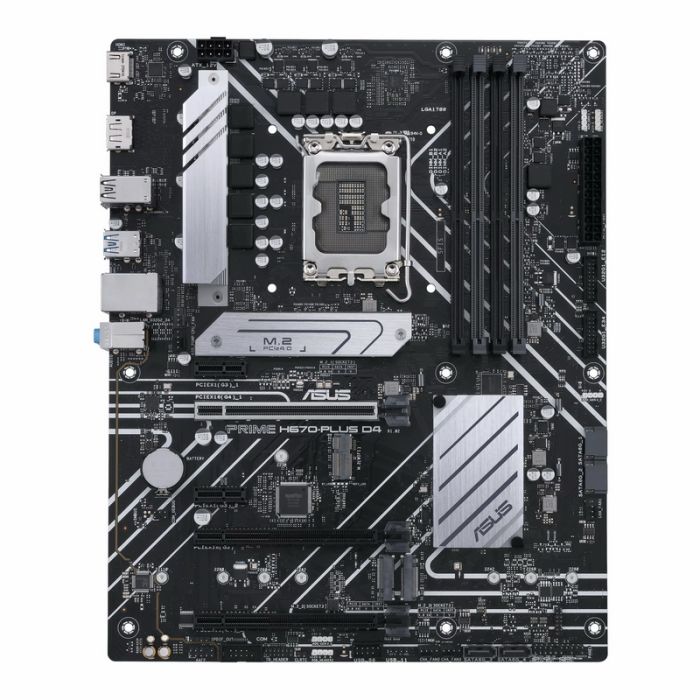

Asus Prime H670-Plus D4 Intel Socket LGA1700 ATX Motherboard | PCIe 4.0 M.2 NVMe | 2.5 GB Ethernet | HDMI | DisplayPort | SATA 6 Gbp/s | USB 3.2 Gen 2 | Aura Sync RGB Headers

LKR 62,650.00
In stock
SKU
A2432
Brand
Asus
Sold By
Footwear Store
0 / 5

Intel H670 (LGA 1700) ATX motherboard with 8 power stages, PCIe 4.0 slots, three M.2 slots, rear USB 3.2 Gen 2 Type-C, Realtek 2.5Gb Ethernet, Thunderbolt 4 header support, DisplayPort, HDMI, Aura Sync

  • Intel LGA 1700 socket: Ready for 12th Gen Intel processors
  • Ultrafast connectivity: PCIe 4.0 slots, three M.2 slots, Realtek 2.5Gb Ethernet, and Thunderbolt 4 header support
  • Comprehensive cooling: VRM heatsink, M.2 heatsink, PCH heatsink, hybrid fan headers, and Fan Xpert 2+
  • ASUS OptiMem: Careful routing of traces and vias to preserve signal integrity for improved memory stability

CPU

Intel Socket LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel Core, Pentium Gold, and Celeron Processors

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.

Chipset

H670
Intel H670 Chipset

Memory

4 x DIMM, Max. 128GB, DDR4

5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered memory

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

OptiMem

Graphics

1 x DisplayPort

1 x HDMI port

Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

Supports max. 4K@60Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

VGA resolution support depends on the processors' resolution.

Expansion Slots

Intel 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel H670 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 3.0 x16 slot (supports x4 mode)

2 x PCIe 3.0 x1 slots

Please check the PCIe bifurcation table on the support site.

Supports Intel Optane Memory H Series on PCH-attached PCIe slot.

Storage

Intel 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

Intel 12th Gen processors support PCIe 4.0 x4 mode.

Intel H670 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Intel Rapid Storage Technology supports NVMe RAID 0/1/5, and SATA RAID 0/1/5/10.

Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

M.2 slot only (Key E, CNVi & PCIe)

Wi-Fi module is sold separately.

USB

Rear USB: Total 8 ports

Rear USB (Total 8 ports)

1 x USB 3.2 Gen 2 port (1 x USB Type-C®)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB: Total 7 ports

Front USB (Total 7 ports)

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x USB 2.0 header supports an additional 1 USB 2.0 port

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

Supports up to 24-Bit/192 kHz playback

Audio Features

Audio Shielding

The power pre-regulator reduces power input noise to ensure consistent performance

Premium audio capacitors

Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 3.2 Gen 2 port (1 x USB Type-C)

2 x USB 3.2 Gen 2 ports (2 x Type-A)

3 x USB 3.2 Gen 1 ports (3 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin AIO Pump header

3 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

1 x USB 2.0 header supports an additional 1 USB 2.0 port

Miscellaneous

3 x Addressable Gen 2 headers

2 x AURA RGB headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x M.2 slot (Key E)

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

1 x Thunderbolt header

Special Features

ASUS 5X PROTECTION III

DIGI+ VRM

Enhanced DRAM Overcurrent Protection

ESD Guards

LANGuard

Overvoltage Protection

SafeSlot Core+

Stainless-Steel Back I/O

ASUS Q-Design

Q-DIMM

Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

Q-Slot

ASUS Thermal Solution

M.2 heatsink

VRM heatsink design

AURA Sync

AURA RGB headers

Addressable Gen 2 headers

Software Features

ASUS Exclusive Software

Armory Crate

AURA Creator

AURA Sync

Fan Xpert 2+

AI Suite 3

Performance And Power Saving Utility

TurboV EVO

EPU

DIGI+ VRM

ASUS CPU-Z

Norton Anti-virus software (Free Trial version)

WinRAR

UEFI BIOS

ASUS EZ DIY

ASUS CrashFree BIOS 3

ASUS EZ Flash 3

ASUS UEFI BIOS EZ Mode

BIOS

192 (128+64) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 Rubber Package

2 x M.2 SSD screw packages

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x User guide

Form Factor

30.5cm x 24.4cm

More Information
BrandAsus
SeriesAsus Prime
Form FactorBasic Motherboard
Model NumberAsus Prime H670-Plus D4
Product ColourBlack
Memory & CacheDDR4 SDRAM
ConditionBrand New, Original Packaging, OEM
Warranty & SupportAuthorized Agent 1-Year Limited Warranty
Service & LocationIsland Wide Delivery Available - Home Delivery & Same Day Delivery From Western Province - Store Locations From Colombo, Negombo, Bambalapitiya, Kandy, Madampe, Malabe, Anuradhapura
Interface & PortsPCIe NVMe
Generation13th Generation
AvailabilityAvailable
