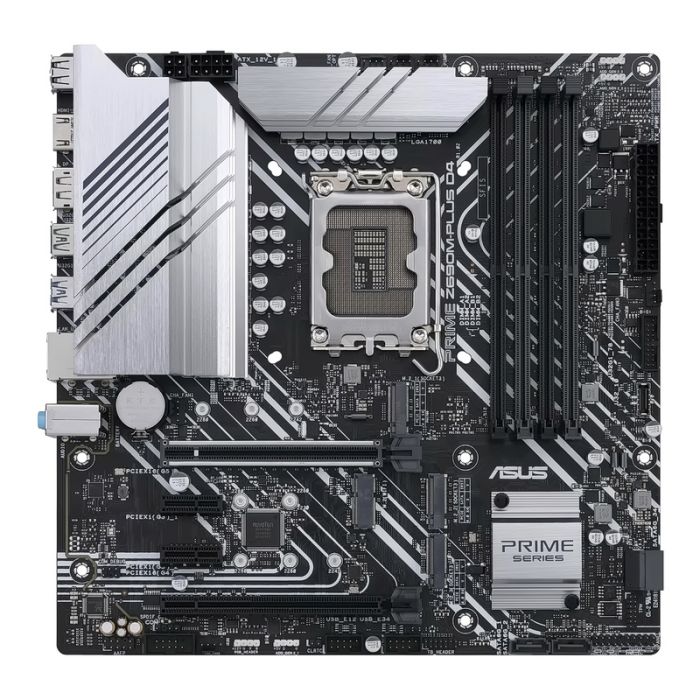

ASUS Prime Z690M Plus D4 Intel Socket LGA1700 mATX Motherboard | PCIe 5.0 M.2 | Intel WiFi 6, 1 GB Ethernet | HDMI | DisplayPort | Thunderbolt | SATA 6 Gbp/s | USB 3.2 Gen 2 | Aura Sync RGB Headers

LKR 91,300.00
In stock
SKU
A2039
Brand
Asus
Sold By
Footwear Store
0 / 5
Intel Z690 (LGA 1700) mATX motherboard with PCIe 5.0, three M.2 slots, 10+1 DrMOS, DDR4, HDMI, DisplayPort, Intel 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front USB 3.2 Gen 1 Type-C, Thunderbolt 4 header, and Aura Sync RGB lighting
  • Intel LGA 1700 socket: Ready for 12th gen Intel processors
  • Enhanced power solution: 10+1 DrMOS, 4-pin+8-pin ProCool connector, alloy chokes, and durable capacitors for stable power delivery
  • Comprehensive cooling: Large VRM heatsinks, PCH heatsink, hybrid fan headers, and Fan Xpert 4
  • ASUS OptiMem II: Careful routing of traces and vias, plus ground layer optimizations to preserve signal integrity for improved memory overclocking
  • Next-gen connectivity: DDR4, PCIe 5.0, Intel 1 Gb Ethernet, USB 3.2 Gen 2x2 Type-C, front panel USB 3.2 Gen 1 Type-C, Thunderbolt 4 header

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 12th Generation Intel processors. Boasting a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime Z690M-Plus D4 provides users and PC DIY builders a range of performance tuning options via intuitive software and firmware features.
Expansion slots
1 x PCIe 5.0 x16 SafeSlot
1 x PCIe 4.0 x16
2 x PCIe 3.0 x1
10+1 DrMOS
4 x DIMM
DDR4 5333(OC)
Dual-Channel
OptiMem II
3 x M.2 slots
1 x M.2 2280(PCIe 4.0 x4 mode)
1 x M.2 2280 (PCIe 4.0 x4 mode)
1 x M.2 2280 (PCIe 4.0 x4 & SATA modes)
CPU fan headers
VRM heatsinks
CHA fan header
AIO pump header
CHA fan header
Chipset heatsink
CHA fan header
2 x AURA Addressable Gen 2 headers
1 x AURA RGB header
1 x AURA Addressable Gen 2 header
2 x USB 2.0 ports (Type-A)
HDMI port
DisplayPort
1 x USB 3.2 Gen 2 port (Type-A)
1 x USB 3.2 Gen 2x2 Type-C
4 x USB 3.2 Gen 1 ports
(4 x Type-A)
Intel 1Gb Ethernet
3 x Audio Jacks
1 x USB 3.2 Gen 1 header
1 x USB 3.2 Gen 1 Type-C Connector
ThunderboltTM header
4 x SATA 6Gb/s
2 x USB 2.0 headers

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS Prime series. The Prime Z690 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control
All-Around Energy Efficiency
The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.

Flexible Air- and Liquid-Cooling Controls
ASUS Fan Xpert 4 software provides comprehensive control over fans and an all-in-one (AiO) cooler. Whether cooling with air or water, and Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO cooler can also be controlled via the UEFI BIOS.

Precise Digital Power Control
The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Quick and Simple Setup
EZ mode displays vital settings and stats and also offers guided wizards, drag-and-drop functionality, and one-click application of important settings — all to help you get your rig up and running in no time.

Intuitive Graphical Fan Control
Fine-tune individual fan settings simply by dragging a curve with the mouse.

EZ XMP
Improve DRAM performance with one click.

Aura On/Off Mode (Stealth)
Easily enable or disable Aura RGB lighting, for a subdued aesthetic touch.

COOLING
Prime Z690 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

Heatsinks
VRM Heatsinks and High-quality Thermal Pads
Two massive VRM heatsinks and high-quality thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.

Cooler by Design
Prime Z690 series features comprehensive cooling controls that are configurable via Fan Xpert 4 software or via the UEFI BIOS.

Multiple Temperature Sources
Each header can dynamically reference three thermal sensors. Fan Xpert 4 allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.

AIO Pump Header
A dedicated PWM/DC header for self-contained water-cooling setups.

Smart Protection
A dedicated integrated circuit protects each fan header from overheating and overcurrent.

4-Pin PWM/DC Fan
Each onboard header supports auto-detection of PWM or DC fans.

PERFORMANCE
Prime Z690 series is built to handle the additional cores and increased bandwidth of 12th Generation Intel processors. ASUS Z690 motherboards provide all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling, and flexible transfer options.

Power Design
Stable power is essential to extract every last bit of performance out of 12th Generation Intel processors. Prime Z690M-Plus D4 is geared to cater to the demands of these high-core-count CPUs.

ProCool Connectors
Proprietary connectors augment the motherboard's link to the PSU with 4 pin+8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.

10+1 DrMOS
A VRM with 10+1 DrMOS delivers the power and efficiency that the latest Intel processors demand.

Memory
ASUS OptiMem II
Revisions to the motherboard’s trace routing provide the latest Intel processors with unrestricted access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce vias and adds shielding zones that significantly reduce crosstalk.

Benefits of ASUS OptiMem II:

  • Improved memory stability and compatibility
  • Allows lower memory latencies at equivalent voltages
  • Improved memory frequency margin

Motherboards with OptiMem II technology were tested with Synopsys HSPICE simulation software Top layer – ground ring to prevent lateral interference

DDR4 5333 (OC)
Improvements to trace routing design provide the latest Intel processors with enhanced access to memory bandwidth. ASUS OptiMem II technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.

Storage
Three M.2 slots (up to 64 Gbps)
Prime Z690M-Plus D4 offers a total of three M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

Connectivity
PCIe 5.0 Slot
The 12th Gen Intel processors bring PCIe 5.0 support to the market. PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards, and backward compatibility with previous versions of PCI Express.

USB 3.2 Gen 2x2 Type-C
Numerous USB ports support high-end rigs loaded with peripherals, including a rear USB Type-C connector with a fast USB 3.2 Gen 2x2 for transmission speeds of up to 20 Gbps.

Thunderbolt 4 Support
Prime Z690M-Plus D4 features Thunderbolt 4 support via an onboard header. With the latest Intel-certified ASUS ThunderboltEX 4 add-on card, it can enable bi-directional speeds of up to 40 Gbps on a single cable. Additionally, this card has a daisy-chain function for multi-screen connection and supports up to an 8K resolution display. It can also provide up to 100 watts of power to fast-charge devices.

Intel 1 Gb Ethernet
Intel Ethernet Connection I219-V reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.
Lower CPU workload High TCP and UDP throughput

M.2 Slot (key E)
Prime Z690M-Plus D4 motherboard comes along with an M.2 Slot (Key E) which can support type 2230 Wi-Fi/BT and Intel CNVi (Integrated Wi-Fi/BT) module

CUSTOMIZATION


Prime Z690 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look.

Audio

Combined onboard features deliver elevated audio
Intelligent design and premium hardware create audio quality, unlike anything you’ve ever experienced.

Audio Shielding
Separates analog/digital signal domains, significantly reducing multi-lateral interference.

Separate Layer for Left and Right Tracks
Ensures minimal crosstalk between audio paths.

Premium Audio Capacitors
Premium parts provide an immersive sound signature, with exceptional fidelity.

Personalization
Aura Sync
Outshine the Competition
A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the strips and devices connected to the onboard RGB headers - and it can all be synced with an ever-growing portfolio of Aura-capable hardware.

Static
Breathing
Strobing
Rainbow
Color Cycle
Starry Night
Music Effect
Smart
Dark
Adaptive Color

Addressable Gen 2 RGB Header
Three addressable Gen 2 RGB headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward compatibility with existing Aura RGB gear.

Armory Crate
Armory Crate is a new software utility designed to give you centralized control of supported products. From a single intuitive interface, Armoury Crate allows you to easily customize RGB lighting and effects for every compatible device in your arsenal. The software also provides control of settings for an ever-growing number of ASUS products, including keyboard and mouse preferences. Armory Crate even features dedicated product registration and news to help you stay in touch with the ASUS community.

SafeSlot
PCIe 5.0 is 2x faster than PCIe 4.0, so we adapted our SMT manufacturing process for the faster SafeSlot, to ensure the highest data speeds. SafeSlot is a reinforced metal sheath added to a PCIe slot to keep a card firmly installed.

CPU

  • Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold, and Celeron Processors
  • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Refer to www.asus.com for the CPU support list.
  • Intel Turbo Boost Max Technology 3.0 support depends on the CPU type.

Chipset

  • Z690

Memory

  • 4 x DIMM, Max. 128GB, DDR4
  • 5333(OC)/5133(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory
  • Dual Channel Memory Architecture
  • Supports Intel Extreme Memory Profile (XMP)
  • OptiMem II
  • The actual memory data rate depends on the CPU types and DRAM modules, for more information refer to www.asus.com for memory support list.

Graphics

  • 1 x DisplayPort
  • 1 x HDMI port
  • Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
  • Support 4K@60Hz as specified in DisplayPort 1.4.
  • Support 4K@60Hz as specified in HDMI 2.1.

Expansion Slots

  • Intel 12th Gen Processors
  • 1 x PCIe 5.0/4.0/3.0 x16 slot
  • Intel Z690 Chipset
  • 1 x PCIe 4.0/3.0 x16 slot (supports x4 mode)
  • 2 x PCIe 3.0 x1 slots
  • Please check the PCIe bifurcation table on the support site.
  • Supports Intel Optane Memory H Series on PCH-attached PCIe slot

Storage

  • Intel 12th Gen Processors
  • M.2_1 slot (Key M), type 2242/2260/2280
  • Intel 12th Gen processors support PCIe 4.0 x4 mode.
  • Intel Z690 Chipset
  • M.2_2 slot (Key M), type 2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
  • 4 x SATA 6Gb/s ports
  • Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10.
  • Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots.

Ethernet

  • 1 x Intel 1Gb Ethernet

Wireless & Bluetooth

  • Wi-Fi module is sold separately.

USB

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • Front USB:Total 7 ports
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.


Audio

  • Realtek 7.1 Surround Sound High
  • Definition Audio CODEC
  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • Audio Features
  • Audio Shielding
  • Premium audio capacitors
  • Dedicated audio PCB layers
  • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

  • 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C)
  • 1 x USB 3.2 Gen 2 port (1 x Type-A)
  • 4 x USB 3.2 Gen 1 ports (4 x Type-A)
  • 2 x USB 2.0 ports (2 x Type-A)
  • 1 x DisplayPort
  • 1 x HDMI port
  • 1 x Intel 1Gb Ethernet port
  • 3 x Audio jacks


Internal I/O Connectors

  • Fan and cooling related
  • 1 x 4-pin CPU fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 3 x 4-pin Chassis Fan headers
  • Power related
  • 1 x 24-pin Main Power connector
  • 1 x 8-pin +12V Power connector
  • 1 x 4-pin +12V Power connector
  • Storage related
  • 3 x M.2 slots (Key M)
  • 4 x SATA 6Gb/s ports
  • USB
  • 1 x USB 3.2 Gen 1 connector (supports USB Type-C)
  • 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
  • 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Miscellaneous
  • 3 x Addressable Gen 2 headers
  • 1 x AURA RGB header
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (AAFP)
  • 1 x M.2 slot (Key E)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1pin)
  • 1 x 20-3 pin System Panel header with Chassis intrude function
  • 1 x Thunderbolt header

Special Features

  • ASUS 5X PROTECTION III
  • DIGI+ VRM (- Digital power design with DrMOS)
  • LANGuard
  • Overvoltage Protection
  • SafeSlot
  • Stainless-Steel Back I/O
  • ASUS Q-Design
  • Q-DIMM
  • Q-Slot
  • ASUS Thermal Solution
  • VRM heatsink design
  • ASUS EZ DIY
  • ProCool
  • AURA Sync
  • AURA RGB header
  • Addressable Gen 2 headers

Software Features

  • ASUS Exclusive Software
  • Armory Crate
  • AURA Sync
  • Fan Xpert 4
  • AI Suite 3
  • Performance And Power Saving Utility
  • TurboV EVO
  • EPU
  • DIGI+ VRM
  • ASUS CPU-Z
  • Norton Anti-virus software (Free Trial version)
  • WinRAR
  • UEFI BIOS
  • ASUS EZ DIY
  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode

BIOS

  • 192 (128+64) Mb Flash ROM, UEFI AMI
  • BIOS

Manageability

  • WOL by PME, PXE

Accessories

  • Cables
  • 2 x SATA 6Gb/s cables
  • Miscellaneous
  • 1 x I/O Shield
  • 2 x M.2 SSD screw packages
  • Installation Media
  • 1 x Support DVD
  • Documentation
  • 1 x User guide

Operating System

  • Windows 11 64-bit, Windows 10 64-bit

Form Factor

  • microATX
  • 24.4cm x 24.4cm
More Information
BrandAsus
SeriesAsus Prime
Form FactorGaming Motherboard
Model NumberASUS Prime Z690M
Product ColourBlack
Memory & CacheDDR4 SDRAM
ConditionBrand New, Original Packaging, OEM
Warranty & SupportAuthorized Agent 1-Year Limited Warranty
Service & LocationIsland Wide Delivery Available - Home Delivery & Same Day Delivery From Western Province - Store Locations From Colombo, Negombo, Bambalapitiya, Kandy, Madampe, Malabe, Anuradhapura
Interface & PortsPCIe NVMe
Generation12th Generation
AvailabilityAvailable
